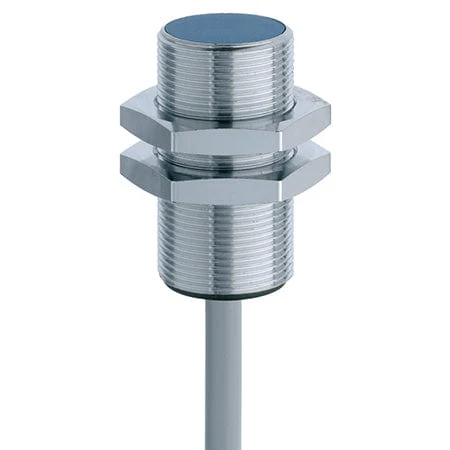

Analog inductive sensor - M18x36mm
Features and benefits - Analog inductive sensor M18x36 mm
Analog inductive sensor M18x36 mm with 2 m PUR cable. Provides continuous analog output 0-5 V / 1-5 mA for accurate distance measurement up to 10 mm. Compact, short housing in nickel-plated brass with IP67 rating.
- Sensing distance: 0-10 mm, analog output signal
- Output signal: 0-5 V or 1-5 mA
- Housing: M18x36 mm, nickel-plated brass
- Sensing face in durable PBTP
- High resolution in the μm range
- Temperature stability ±5% (0...+70 °C)
- Power supply 10-30 VDC, low power consumption
- 2 m PUR cable, max cable length 300 m
- IP67 - dust and water protected
An accurate sensor for industrial measurements where analog output is required.
- Pay securely with card via PayPal
- Pay quickly and efficiently with Swish
- Email us: sales@endlesssolutions.se
- Worldwide delivery with UPS
Description
Article no.: DW-AD-509-M18-120
Product Description - Analog inductive sensor M18x36 mm
The DW-Ax-509-M18 analog inductive sensor is designed for precise distance measurements in industrial applications. With a measurement accuracy in the micrometer range and a sensing distance of up to 10 mm, the sensor can deliver reliable signals even in demanding environments.
The sensor offers two analog output signals: 0-5 V or 1-5 mA, making it flexible to integrate into different control systems. It is constructed with a short M18x36 mm nickel-plated brass housing and a durable PBTP sensor surface, ensuring long life and stable performance.
Electrically, the sensor is powered by 10-30 VDC and has low current consumption (<10 mA). With an operating temperature range of -25 to +70°C and temperature drift below 5%, stable measurement is guaranteed even under varying conditions. The IP67 rating makes the sensor dust and water resistant.
Thanks to its high resolution and 500 Hz bandwidth, the DW-Ax-509-M18 is suitable for dynamic applications such as precision control, positioning systems and quality control in the manufacturing industry.
For full technical specifications and installation, please see the attached PDF.
